Four-Point-Probes

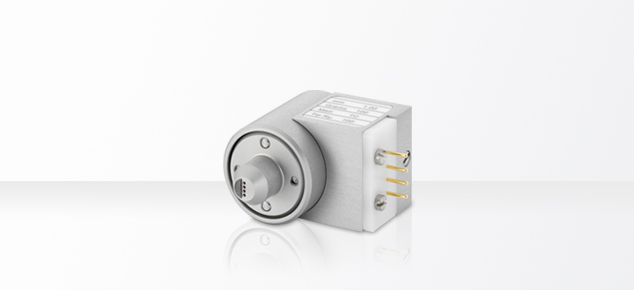

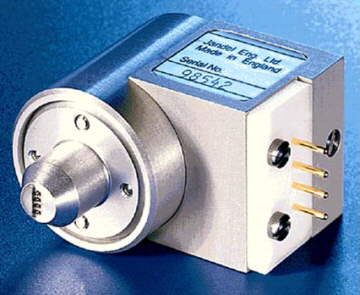

JANDEL 4-Pin Four Point Probe Head DOWNLOAD the product brochure napson-four-pin.pdf [36K PDF file] regarding the Four Pin Probe for use with Napson systems. JANDEL ENGINEERING LTD. manufactures the 4-pin probe to be compatible with Napson Corporation equipment.. It has a 1" diameter body and is 1.6" high (25.4mm x 40.5mm high). The probe weighs 50g. Jandel four point probe heads are built with upper and lower jewel bearings and are built to 1% mechanical accuracy. Final testing involves the use of calibrated measurement instruments (electronic force gauge, video inspection system, interferometer) to verify tip radii, tip spacing, spring load, and tip planerity.

---

Four-Point-Probes is a division of Bridge Technology. To request further information please call Bridge Technology at (480) 988-2256 or send e-mail to Larry Bridge at: sales@bridgetec.com
