Jandel Compact Four Point Probe

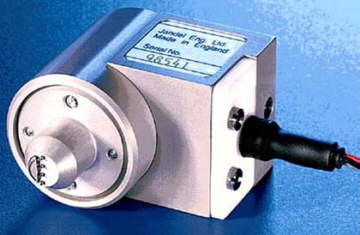

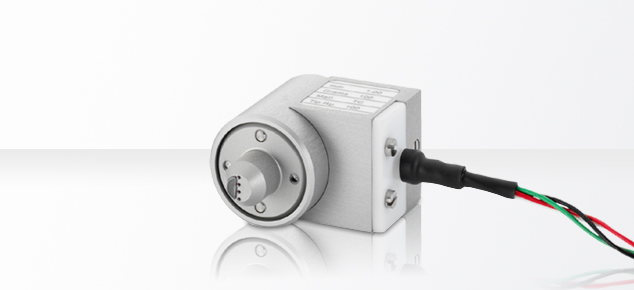

JANDEL Cartridge with Lead Four Point Probe Head

JANDEL ENGINEERING LTD. manufactures the Cartridge with Lead probe to be compatible with ASM, PIE, Veeco AP150 (when fell adaptor is used), Veeco FPP5000 (upside down-when fell adaptor is used), Parc-Amber, Probex, and for various engineering applications. It has a 1" diameter body and is 1.9" high (25.4mm x 48.5mm high) and weighs 50g. If you need a probe for a Veeco systems that is not using a Fell adaptor, then see the square bodied "Compact Probe".

Jandel four point probe heads are built with upper and lower jewel bearings and are built to 1% mechanical accuracy. Final testing involves the use of calibrated measurement instruments (electronic force gauge, video inspection system, interferometer) to verify tip radii, tip spacing, spring load, and tip planerity.

Four-Point-Probes is a division of Bridge Technology. To request further information please call Bridge Technology at (480) 988-2256 or send e-mail to Larry Bridge at: sales@bridgetec.com
