Jandel Microposition Probe

Four-Point-Probes

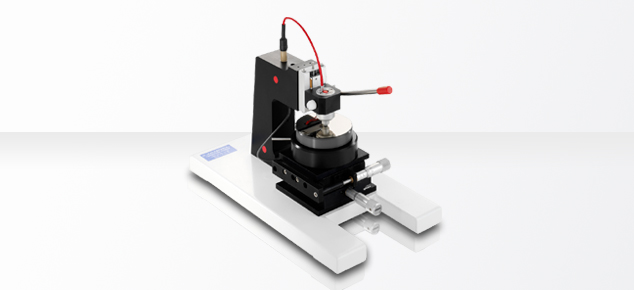

Jandel Microposition Probe Stand (click image to see larger photo) Download the one page product brochure (33K PDF file) for the Microposition Probe Download the instruction manual (150K PDF file) for the Microposition Probe Precision ball-bearing X-Y-theta stage with micrometer adjustments 25 mm x 25 mm X-Y stage travel Sample holder for materials up to 76 mm in diameter Samples can be held by vacuum if necessary Includes one Jandel Cylindrical probe head Lever operated probe with switched current leads to prevent sparking Optional probe head shroud to shield light from any sample up to 2" diameter Application Ideal for probing small samples where high placement accuracy is required. An optional probe head shroud shields light from any sample up to 2" diameter.

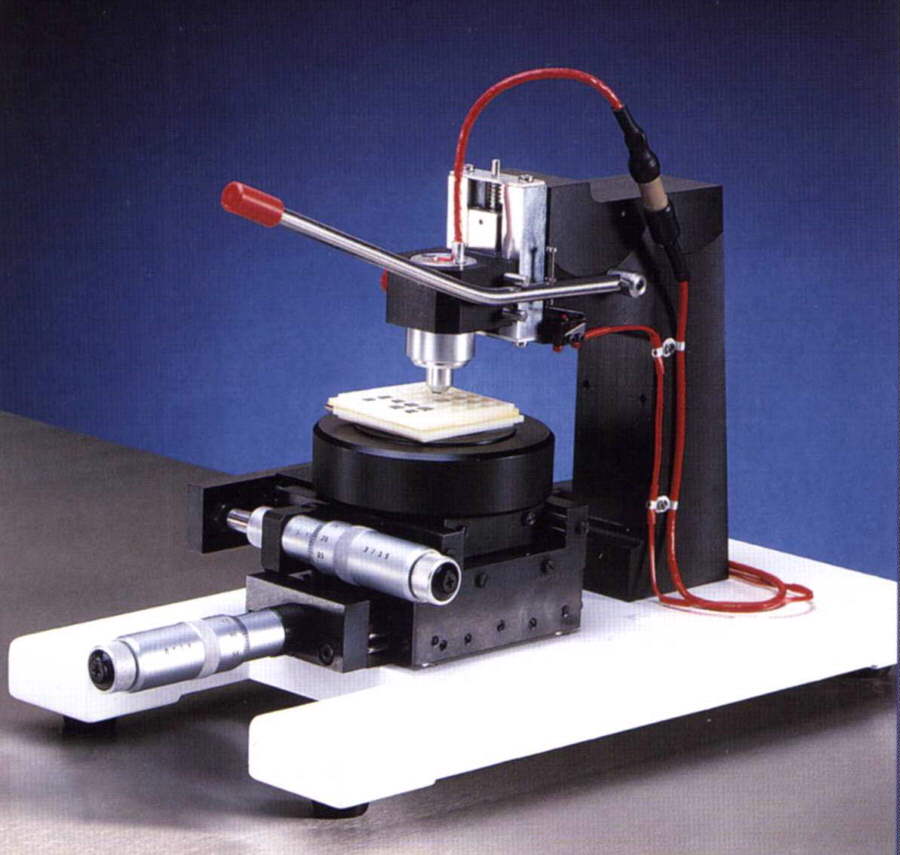

click image for more information	For additional versatility, the Multi Height Microposition Probe has the Microposition X-Y stage mounted onto the Multi Height Probe to make a system that can perform all of the duties of both the Microposition Probe and the Multi Height Probe.
Click here to download a document regarding the light shroud (the "Large Shroud") available for the Jandel Multi Height Microposition Probe for use in blocking light from sample up to 2" in diameter [150K PDF file]
A complete four point probing system consists of the Multi Height Probe shown above, combined with the RM3 Test Unit

Four-Point-Probes is a division of Bridge Technology. To request further information please call Bridge Technology at (480) 988-2256 or send e-mail to Larry Bridge at: sales@bridgetec.com
