JANDEL Engineering
Model PN01
P/N Typing Unit
 (click image to see larger photo)
Download the one page product brochure (33K PDF file) regarding the P/N Typing Unit

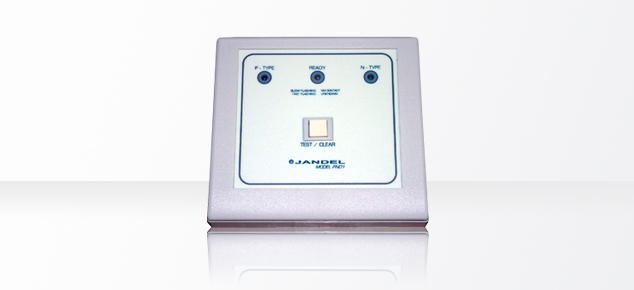

The Jandel Engineering model PN01 P/N Typing Unit can be used with any four point probe (linear array) to determine whether a material is P or N type. It uses the "rectification" method to determine P or N type. It is normally used with a high pressure probe (sharp tips and strong springs) to insure good contact. When used with a Jandel four point probe system, the probe portion of the system can be plugged into the typing unit instead of into the Jandel electronics. When it is to be used with some other form of four point probe, Jandel can include the male connector so that the four point probe can be plugged into the back of the PN01 P/N Typing Unit. The PN01 includes a universal AC adaptor.
The following image shows the back of
the unit where the 5 pin DIN
connector coming from the Jandel
four point probing system
can plug into the P/N Typing
Unit. The connector on the right
side is where the AC adaptor
plugs in.
 (click image to see larger photo)
|
